AC1010435 – Crankcase 90.5/92mm Cylinders 8/10mm Case Savers
Description:
- Universal design with Type 3 oil filler and Type 2 engine bar mounts
- Ready cut for 90.5/92mm barrels and pistons
- Supplied with both 8mm and 10mm case savers
- Pre-drilled and tapped for full flow oil system (3/8" NPT thread)
- Reinforced behind number 3 cylinder for added strength
- Barrel mating surfaces machined for consistent deck heights
- Clearanced for up to 82mm VW journal crankshafts, with the option for 86mm
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Oil pick-up pipe security should always be checked as they are factory assembled but may not be fully tightened
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1010436 – Crankcase 94mm Cylinders 8/10mm Case Savers
Description:
- Universal design with Type 3 oil filler and Type 2 engine bar mounts
- Ready cut for 94mm barrels and pistons, with 10mm case savers
- Supplied with both 8 and 10mm Case Savers
- Pre-drilled and tapped for full flow oil system (3/8" NPT thread)
- Reinforced behind number 3 cylinder for added strength
- Barrel mating surfaces machined for consistent deck heights
- Clearance for up to 82mm VW journal crankshafts, with the option for 86mm
Introducing the Aluminium Super Race Crankcase by Auto Linea—a high-performance, durable crankcase designed for versatility and strength. This universal crankcase is compatible with Type 2 and Type 3 engines and requires no additional machining. Constructed from robust aluminium, it offers enhanced performance and reliability, making it an ideal choice for both racing and everyday driving. Key modifications ensure ease of installation and long-lasting durability, allowing you to maximise your engine's potential.
The crankcase comes pre-cut for 94mm barrels and pistons, and includes essential features like a full flow oil system with a pre-installed blanking plug. The design also addresses common weak points by reinforcing the area behind the number 3 cylinder and providing clearance for long stroke crankshafts up to 86mm. Whether you’re upgrading an existing engine or building a new one, the Auto Linea Aluminium Super Race Crankcase is engineered to deliver top-tier performance and reliability. Suitable for both 8 and 10mm head studs.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Oil pick-up pipe security should always be checked as they are factory assembled but may not be fully tightened
Please note modification to the fanshroud will be required to allow it to sit correctly on the bubble top case.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC101210 – Dynamo / Alternator Stand Aluminium
Description:
- Aluminium stand for 12V dynamo or alternator
- Fits 1200-1600cc engines
- Suitable for 105mm dynamo, and all alternators
This 12-volt dynamo or alternator stand, made from durable aluminium, is designed to fit 1200-1600cc engines, supporting stock-style 105mm dynamos and all alternators. Superior quality compared to cheaper alternatives for a perfect fit.
Unlike many lower-quality alternatives, this stand offers enhanced durability and strength, making it a reliable choice for maintaining or upgrading your engine. It's ideal for anyone seeking a robust, stock-style solution with the added benefit of premium materials.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split
AC101211 – Dynamo / Alternator Stand Chrome
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split
AC101240 – Scat Rocker Cover Set Stainless Steel
Description:
- Larger size for high lift rockers.
- Embossed logo with gasket location tabs.
- Includes clips and stock gaskets.
Scat's stainless steel rocker covers are designed to enhance performance with their larger size, accommodating high lift rockers with ease. The embossed logo and special tabs ensure a secure gasket fit, while the covers use stock gaskets for a reliable seal.
Supplied as a pair, these rocker covers come complete with clips and gaskets, making installation straightforward and convenient. Crafted from durable stainless steel, they offer both style and longevity for your engine.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC101333BR – Empi GTV-2 Cylinder Head 85.5/87mm Complete
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Requires lash caps AC1094006
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC101334 – GTV-2 Cylinder Head 90.5-92mm Bore 40x35.5mm Valves Complete
Description:
- Manley stainless steel valves; 40mm inlet and 35.5mm exhaust
- Heavy-duty single valve springs with 3-groove collets
- Chromoly retainers and 55cc combustion chambers
Upgrade your engine with this high-performance single spring cylinder head, designed for 90.5/92mm barrels and pistons. It features 40mm stainless steel inlet valves and 35.5mm stainless steel exhaust valves, ensuring durability and efficient airflow.
The head is equipped with heavy-duty single valve springs and 3-groove collets for enhanced valve control, along with robust Chromoly retainers. With 55cc combustion chambers and 12mm spark plug threads, it delivers optimal compression and ignition performance for your engine.
Combustion Chamber Volume: 56cc
Intake Port Volume: 56cc
Exhaust Port Volume: 66.5cc
Flow @ 25” vacuum
Valve lift - CFM
.100” - 55CFM
.200” - 87CFM
.300” - 113CFM
.400” - 130CFM
.500” - 137CFM
.600” - 141CFM
.650” - 142CFM
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Requires lash caps AC1094006
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC101336 – Cylinder Head Type4 42x36 With HD Single Valve Spring, Pair
Description:
- Exclusive European sourced castings
- Silicon bronze valve guides
- Hardened valve seats
Compatible Vehicles: - T2 Bay (1976,1977,1978) - 914 (1973,1974,1975,1976)
Notes:
Requires lash caps AC1094006
Additional Vehicle Info: 912E,914,T2 Bay
AC101338 – GTV-2 Cylinder Head 94mm 40x35.5mm, Dual Valve Springs, Complete
Description:
- 40 x 35.5mm Manley stainless steel valves for enhanced performance
- Designed for 94mm bore with dual valve springs
- Larger intake and exhaust ports—20% bigger than stock
- Complete with a performance valve job, sold individually
Upgrade your engine with the EMPI GTV-2 Dual Port Cylinder Head, engineered to outperform the competition. This head features beefed-up intake and exhaust ports, allowing for massive porting without the need for welding. Crafted from a special aluminium blend, it offers exceptional strength and durability while remaining repairable for added longevity.
The GTV-2 casting boasts significantly larger intake and exhaust ports, providing improved airflow and cooling. With a design that includes additional material around the combustion chamber, it’s ready for deep fly cutting and performance enhancements. Each head comes complete with Manley stainless steel valves, installed valve seats, and bronze valve guides. Designed for a standard 85.5mm bore and 58cc chamber, the GTV-2 allows you to run a reliable performance head or customise it for extreme configurations. Elevate your engine's capabilities with this outstanding cylinder head!
Chamber Volume: 56cc
Intake Port Volume: 56cc
Exhaust Port Volume: 66.5cc
Flow @ 25” Vacuum
Valve lift - CFM
.100” - 55CFM
.200” - 87CFM
.300” - 113CFM
.400” - 130CFM
.500” - 137CFM
.600” - 141CFM
.650” - 142CFM
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Plug Size: 12mm (Replacement NGK number is D8EA)
Sold individually; we recommend ordering x2 for one engine
Requires lash caps AC1094006
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1014001 – Billet Aluminium Cam Plug
Description:
Billet aluminium cam plug
Only compatible with crankcases with a groove in the case for the plug and cases fitted with cam bearings.
Check your case - Late Brazil cases use a rubber plug 040-101-157.
Early 1200 cases up to 1965 with the cam running directly in the case use plug C113-101-157 (27.4mm).
1963-1965 in T2 Splitscreen will need to check
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC101401 – Rocker Cover Set Chrome
Description:
- Stock replacement with a chrome finish.
- Includes clips for easy installation.
- Requires separate stock valve cover gaskets.
These stock-style chrome-plated valve covers offer a perfect replacement for your original covers, combining classic looks with enhanced durability. The sleek chrome finish adds a touch of shine to your engine bay, while maintaining the traditional style.
Supplied with clips for a hassle-free installation, these valve covers fit seamlessly with your existing setup. Please note that stock valve cover gaskets are required and sold separately, ensuring a complete and reliable seal for your engine.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1014012 – Case Savers 10mm I.D.X 14mm O.D. Set Of 8
Description:
- Repairs stripped 10mm head studs with M10-1.5 inner threads
M14-2.0 outer diameter and 25mm length for a secure fit
Set of 8 case savers for reliable engine crankcase repair
This set of 8 case savers is designed to repair stripped 10mm head studs in engine crankcases. Featuring M10-1.5 inner threads and an M14-2.0 outer diameter, these case savers provide a larger surface area for a more secure hold, ensuring long-lasting performance and preventing further damage. At 25mm in length, they are the perfect solution for restoring your engine’s integrity.
Case savers are essential when dealing with pulled or stripped head studs, offering a quick and effective repair. They distribute the pressure evenly, preventing further wear and providing a stable, durable fix. With this set of 8, you can efficiently repair and maintain your engine’s crankcase, getting it back to optimal performance.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC101440 – Rocker Cover Set Aluminium Clip-On
Description:
- Larger design for high lift rockers.
- Finned for enhanced heat dissipation.
- Includes gaskets and clips for easy installation.
These aluminium clip-on rocker covers are expertly designed to accommodate high lift rockers, offering more space than standard covers. The finned construction not only adds a stylish touch but also aids in heat dissipation, helping to keep your engine running cooler under high-performance conditions.
Supplied as a pair, these rocker covers come complete with gaskets and clips for a secure fit and easy installation. Whether you're upgrading your engine or replacing worn-out covers, these aluminium rocker covers provide the durability and functionality needed for optimal engine performance.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1014505S – Seal Set for Cast CSP Valve Covers
Description:
This set contains all necessary replacement seals for the Type-1 engine valve covers, including two O-ring seals made from FKM material and four O-rings to seal the rocker covers’ mounting bolts.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Seal Set for CSP Valve covers AC1014505
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1014506 – Rocker Studs Extra Long
Description:
- Machined from heat-treated Chromoly steel for maximum strength
- Extra-long rocker studs with +6.8mm fitting surface
- Supplied as a set of 4, compatible with Type-1 & WBX engines
These heavy-duty rocker studs are machined from high-quality Chromoly steel and heat-treated for maximum strength and durability. Designed to withstand the demands of high-performance engines, they are the ideal choice for building a powerful engine. With a longer fitting surface (+6.8mm) and increased overall length (+6.3mm), they provide the additional clearance necessary when working with shimmed blocks. These Grade 10.9 studs come with rolled threads, ensuring a strong and secure fit under stock valve covers.
Perfect for Type-1 and WBX engines, these rocker studs are essential for setting rocker geometry and shimming the blocks, especially when stock studs are too short for the job. Supplied as a set of four, these studs match the quality of stock components while offering the extra length required for customised builds. With a total length of 2.685'', they’re a reliable solution for any serious engine builder.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - T25 (1982,1983,1984,1985,1986,1987,1988,1989,1990,1991,1992)
Additional Vehicle Info: Beetle,Karmann Ghia,T25,T2 Bay,T2 Split
AC1014562 – Case Savers 8mm I.D.X 12mm O.D.- Set Of 8
Description:
A set of 8 crankcase case savers for repairing engine crankcases with stripped 8mm head studs or for converting 10mm cases without inserts to 8mm with inserts. External Thread is M12 x 1.5 (Standard late case thread)
Compatible Vehicles: - T2 Bay (1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1971,1972,1973,1974) - Type 3 (1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,Type 3
AC101460 – Rocker Cover Set, Aluminium, Bolt-On, 1200-1600cc
Description:
- Larger design for high lift rocker clearance.
- Finned for effective heat dissipation.
- Includes gaskets and hardware for installation.
These aluminium bolt-on rocker covers are designed to accommodate high lift rockers, offering more space than standard covers. The finned construction enhances heat dissipation, ensuring your engine stays cool even under high-performance conditions.
Supplied as a pair, these rocker covers come complete with gaskets and hardware, making installation straightforward. Whether you're upgrading your engine or replacing old covers, these aluminium rocker covers provide both functionality and durability, ensuring optimal engine performance.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Uses standard gaskets
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1016536 – Case savers 8mm ID x 12mm OD - Singles
Description:
Case Saver with
12mm Outer Diameter, 8mm Inner Diameter, and 1.5mm Thread Pitch
Sold in Singles
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1018852 – EMPI Logo Rocker Cover Set Aluminium Bolt-On
Description:
- U-channel with rubber gaskets for a secure seal.
- Larger design with fins for heat dissipation.
- Includes EMPI logo and complete hardware.
EMPI's cast aluminium rocker covers are designed for both performance and style. Featuring a unique U-channel design with rubber gaskets, these covers ensure a positive, leak-proof seal, perfect for engines with high lift rockers. The larger-than-stock size provides the necessary clearance, while the finned surface helps dissipate heat efficiently.
The iconic EMPI logo is proudly displayed in the center, adding a professional touch to your engine bay. Each set comes with a pair of rubber gaskets and all the necessary hardware for easy installation. For maintenance or replacements, rubber gaskets are also available separately under part number AC1018868.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1018854 – Rocker covers, EMPI GT with Gaskets
Description:
Cast aluminium rocker covers manufactured by EMPI. These rocker covers feature a special U-channel with rubber gaskets to provide a positive seal, they are also larger than stock for high lift rockers and are finned to aid heat dissipation with the EMPI logo in the centre. The covers are supplied with a pair of rubber gaskets and hardware to fit. The rubber gaskets are available separately in pairs.
These are their new GT castings.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1947,1948,1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Buggy/Baja (1947,1948,1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Buggy/Baja,Karmann Ghia,T2 Bay,T2 Split
AC1018855 – Rocker Cover Set 1700-2000cc Bolt-On Aluminium
Description:
Compatible Vehicles: - T2 Bay (1972,1973,1974,1975,1976,1977,1978,1979) - 914 (1970,1971,1972,1973,1974,1975,1976) - T25 (1980,1981,1982,1983)
Additional Vehicle Info: 914,T25,T2 Bay
AC1018868 – EMPI GT Rocker Cover Gasket For Bolt On Covers 1200-1600cc
Description:
- Precision fit for EMPI AC1018852 & AC1018854 rocker covers.
- Durable rubber for long-lasting seal.
- Easy installation, no tools required.
Rubber rocker cover gaskets designed for EMPI aluminum rocker covers provide a reliable and durable seal to prevent oil leaks. Tailored specifically to fit AC1018852 & AC1018854 rocker covers, these gaskets ensure a precise fit that reduces the risk of warping or leaking over time.
Made from high-quality rubber, these gaskets offer excellent resistance to heat and oil, making them a perfect choice for high-performance engines. Their easy installation process allows for a secure fit without the need for additional tools, ensuring a hassle-free experience.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:To fit AC1018852 rocker covers
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1019086 – Rocker Cover Bolt Kit
Description:
Bolt-up rocker cover bolt kit. Includes the hardware and stud seals to bolt on aftermarket aluminium bolt-on rocker covers.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:To fit AC1018852 EMPI rocker covers, but will also suit most other T1 aftermarket bolt on rocker covers
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1019148 – Crankcase Adaptor Kit
Description:
Crankcase adaptor plate allowing a Type 1 crankcase to be used in a Baywindow 1968-1979 without the engine support bar mounting holes. The kit is supplied with a new oil pump cover and mounting hardware.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979)
Additional Vehicle Info: T2 Bay
AC1019164 – Rocker Cover Breather Adapter Set
Description:
- Reduces crankcase pressure and oil blow-by
- Includes rubber washers for a secure seal
- 1/2" hose barbs for easy breather hose fitting
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:The rocker covers will require drilling to fit
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1019164CB – Rocker Cover Breather Adapter Set
Description:
Rocker cover vents by CB Performance.
These rocker cover vents are supplied in pairs with the rubber washers to seal them against the rocker covers. They have 1/2'' hose barbs to attach breather hoses to.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:The rocker covers will require drilling to fit
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1019198 – Oil Pressure Adjuster Kit
Description:
Oil pressure adjuster kit.
This kit replaces the original oil pressure relief valve plug on twin port engines and enables the exact oil pressure desired to be selected. For use with standard or heavy duty springs.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031442 – 044 Magnum Cylinder Head 90.5/92mm 40x35.5mm Dual Spring
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031443 – 044 Magnum Cylinder Head 94mm Dual Spring
Description:
- Designed for maximum power with big flowing ports and robust construction
- Features 40 x 35.5mm SUPERGRIP Stainless Steel valves for optimal performance
- Dual Hi-Rev springs, chromoly retainers, bronze silicon racing valve guides, 3/4" long reach spark plug bosses, double thick combustion chamber walls, tapered cooling fins and factory produced by an O.E.M supplier to Volkswagen.
- Precision-engineered with a performance 4-angle valve job for enhanced airflow
Elevate your engine's performance with the CB Performance 044 Magnum cylinder head, expertly cut for 94mm barrels and pistons. This head is designed to maximize power output, boasting a strong structure with big flowing ports that enhance airflow. Equipped with 40 x 35.5mm SUPERGRIP Stainless Steel valves, it ensures a reliable and efficient combustion process, perfect for high-performance builds.
The 044 Magnum head features durable components like dual Hi-Rev chrome silicon valve springs and manganese bronze racing valve guides. With 12mm 3/4" reach spark plug holes and a precise 4-angle valve job, this head is built for serious enthusiasts who demand the best. Whether you’re racing or cruising, the CB Performance 044 Magnum cylinder head is your key to unlocking exceptional engine power and performance. Order yours today!
Chamber Volume: 55cc
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031446 – 044 Special Cylinder Head 90.5/92mm 40x35.5mm Single Spring
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031447 – 044 Special Cylinder Head 94mm Single Spring
Description:
- Powerful design with big-flowing ports for enhanced performance
- Features SUPERGRIP stainless steel single groove valves
- Includes 12mm 3/4" reach spark plug holes for easy fitment
- Chromoly retainers and single groove valve locks for durability
- Performance 4-angle valve job for optimal airflow
- Bronze silicon racing valve guides for improved longevity
Elevate your engine's performance with the CB Performance 044 Special Cylinder Head, specifically cut for 94mm barrels and pistons. These heads are engineered for power and efficiency, featuring big-flowing ports and innovative design elements like SUPERGRIP stainless steel single groove valves. With a focus on durability, the heads come equipped with chromoly retainers and single groove locks, ensuring they stand up to the rigors of high-performance driving.
Designed for ultimate performance, the cylinder heads feature a 4-angle valve job on the seats, enhancing airflow for maximum horsepower. Single Hi-Rev springs, chromoly retainers, racing valve guides, 3/4" long reach spark plug bosses, double thick combustion chamber walls, tapered cooling fins and factory produced by an O.E.M supplier to Volkswagen. The addition of bronze silicon racing valve guides and tungsten carbide alloy valve seats further improves reliability and longevity. Sold individually, these 044 heads are the perfect choice for anyone looking to boost their engine's capabilities. Upgrade your setup today and experience the difference!
Chamber Volume: 55cc
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031457 – 044 CNC Ultra Mag Plus Cylinder Heads 90.5/92mm Pair
Description:
- Designed for 90.5/92mm barrels and pistons
- 44mm inlet and 37.5mm exhaust valves for maximum airflow
- CNC ported for 120% more flow than stock VW heads
- Sold in pairs
Unlock the potential of your engine with the CB Performance 044 CNC Ultra Mag Plus Cylinder Heads, expertly engineered for 90.5/92mm barrels and pistons. These heads feature full CNC porting, providing a remarkable 120% increase in intake flow over stock VW cylinder heads. To optimize performance, the combustion chambers are also CNC machined, enhancing power and flame travel for a more efficient burn.
With relocated 12mm spark plug bosses for added strength and durability, the ULTRA MAG Plus heads accelerate the exhaust charge through precisely machined exhaust ports. Based on the innovative castings, these heads are race-ready and offer maximum horsepower potential for ultra high-performance engines right out of the box. Elevate your engine's performance with the unmatched quality of CB Performance!
Features:
- Chamber Volume: 62cc
- Intake Port Volume: 72cc
- Exhaust Port Volume: 66.5cc
- CNC Ported and Polished for Increased Flow
- 12mm 3/4'' Reach Spark Plug Holes
- 44mm x 37.5mm SUPERGRIP 214N Single Groove Stainless Steel Valves with Stellite Tips
- SUPERGRIP Chromoly Valve Spring Retainers
- SUPERGRIP Single Groove Valve Locks
- Performance 4 Angle Valve Job (30, 45, 60 & 75) on seats
- Manganese Bronze Racing Valve Guides
- Tungsten Carbide Alloy Valve Seats
- Dual Hi-Rev Chrome Silicon Valve Springs
Flow @ 25” Vacuum (with CB Big Beef IDA manifold)
Valve Lift - CFM
.100” - 53CFM
.200” - 103CFM
.300” - 137CFM
.400” - 160CFM
.500” - 177CFM
.600” - 190CFM
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Coil Bind @ .930"
Installed Pressure - 168lbs
Pressure - 324lbs. @520 lift
Installed height of Valve Spring - 1.500-1.530"
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031671 – CB Performance Panchito Cylinder Head Standard Bore 1600-1641cc
Description:
- Dyno-proven ports for maximum horsepower
- Enhanced port velocity and airflow with 40mm x 35.5mm valves
- Strengthened combustion chamber supports larger bores
The CB Performance Panchito 044 Cylinder Head represents the pinnacle of performance engineering, developed in collaboration with AutoLinea, an esteemed OEM supplier adhering to ISO9001:200e quality standards. Each Panchito 044 head undergoes rigorous metallurgy and machining inspections, ensuring exceptional quality and reliability.
Featuring race-proven port designs, the Panchito 044 offers outstanding airflow and port velocity, with a 40mm intake port delivering 162 CFM and over 300 ft. per second velocity. The 35.5mm exhaust port benefits from a reduced bowl size and improved short turn radius, enhancing both low-end and mid-range performance while preserving top-end power. The newly designed high quench combustion chamber, with a volume of 54cc, is ideal for small displacement engines and supports bore sizes from 85.5mm to 94mm. This cylinder head is engineered for T-1, T-2, and T-3 VW 1600-based engines and is sold individually, offering top-tier performance and durability.
- Dyno-proven ports for maximum horsepower
- Enhanced port velocity and airflow with 40mm x 35.5mm valves
- Strengthened combustion chamber supports larger bores
The CB Performance Panchito 044 Cylinder Head represents the pinnacle of performance engineering, developed in collaboration with AutoLinea, an esteemed OEM supplier adhering to ISO9001:200e quality standards. Each Panchito 044 head undergoes rigorous metallurgy and machining inspections, ensuring exceptional quality and reliability.
Featuring race-proven port designs, the Panchito 044 offers outstanding airflow and port velocity, with a 40mm intake port delivering 162 CFM and over 300 ft. per second velocity. The 35.5mm exhaust port benefits from a reduced bowl size and improved short turn radius, enhancing both low-end and mid-range performance while preserving top-end power. The newly designed high quench combustion chamber, with a volume of 54cc, is ideal for small displacement engines and supports bore sizes from 85.5mm to 94mm. This cylinder head is engineered for T-1, T-2, and T-3 VW 1600-based engines and is sold individually, offering top-tier performance and durability.
Chamber Volume: 54cc
Intake Port Volume: 62cc
Standard features of the Panchito 044™:
12mm 3/4'' Reach Spark Plug Holes
40mm x 35.5mm Supergrip 214N Stainless Steel Valves With Stellite Tips
Supergrip Chromoly Valve Spring Retainers
Supergrip Valve Locks
Three Angle Performance Valve Job
Manganese Bronze Racing Valve Guides
Tungsten Carbide Alloy Valve Seats
Single Hi-Rev Chrome Silicon Valve Springs
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031672 – CB Performance Panchito Head, 90.5/92mm Bore
Description:
- Engineered for superior port velocity
- Enhanced combustion chamber strength
- Fits 1600-based T-1, T-2, T-3 VW engines
The CB Performance Panchito 044™ Cylinder Head is a high-performance upgrade engineered in collaboration with AutoLinea, a top-tier OEM supplier renowned for its stringent ISO9001:200e quality control. This partnership ensures that every Panchito 044™ head meets rigorous standards, passing thorough metallurgy and machining inspections. Dyno-tested and race-proven, the Panchito 044™ features precision-engineered intake and exhaust ports designed to maximize horsepower and airflow, delivering up to 162 CFM through the 40mm intake valve.
To further enhance its performance, CB Performance has reinforced the combustion chamber, adding extra material for increased strength and support, making it ideal for larger bore cylinders and high-compression applications. With a 54cc high quench combustion chamber, this cylinder head is perfectly suited for small displacement engines. Whether you're looking to boost your engine's low-end torque or achieve top-end power, the Panchito 044™ delivers unmatched performance, making it a top choice for VW enthusiasts.
Features:
Chamber Volume: 54cc
Intake Port Volume: 62cc
Standard features of the Panchito 044
12mm 3/4'' Reach Spark Plug Holes
40mm x 35.5mm Supergrip 214N Stainless Steel Valves With Stellite Tips
Supergrip Chromoly Valve Spring Retainers
Supergrip Valve Locks
Three Angle Performance Valve Job
Manganese Bronze Racing Valve Guides
Tungsten Carbide Alloy Valve Seats
Single Hi-Rev Chrome Silicon Valve Springs
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031673 – Panchito Cylinder Head 94mm 40x35.5mm Single Spring
Description:
- Dyno-proven ports with 40mm x 35.5mm valve sizes
- Superflow™ 600 tested for optimal air flow and port velocity
- 62cc intake port flows 162 CFM; 35.5mm exhaust with reduced bowl size
- Extra material around the combustion chamber for larger bores
- High quench 54cc combustion chamber, ideal for high compression
- Features 12mm spark plug holes and Supergrip stainless steel valves
Elevate your engine's performance with the CB Performance Panchito 044™ Cylinder Heads, developed in collaboration with AutoLinea, a leading OEM supplier. Each head undergoes rigorous quality control to ensure top-notch metallurgy and machining, reflecting AutoLinea's ISO9001:200e standards. The Panchito 044™ features race-proven port designs, meticulously engineered on the Superflow™ 600 flow bench for unmatched port velocity and airflow. With a 40mm intake port and 35.5mm exhaust, this head delivers exceptional performance, offering impressive low-end and mid-range power without sacrificing top-end capability.
Designed to fit 1600-based engines in T-1, T-2, and T-3 VW models, the Panchito 044™ is built with additional material around the combustion chamber to support larger bore cylinders. The high quench combustion chamber, with a volume of 54cc, is perfect for high compression setups and bore sizes ranging from 85.5mm to 94mm. Standard features include 12mm spark plug holes, Supergrip 214N stainless steel valves with Stellite tips, chromoly valve spring retainers, and tungsten carbide alloy valve seats. Sold individually, this head ensures superior strength, reliability, and performance for your engine build.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1031698 – C Channel Rocker Cover Gaskets, Pair
Description:
C-channel rocker cover gaskets, pair.
Suitable for type 4 engines fitted with aftermarket C-channel rocker covers only.
Oil resistant neoprene rubber gaskets can last for many valve adjustments with zero leaks.
Compatible Vehicles: - T2 Bay (1972,1973,1974,1975,1976,1977,1978,1979) - Baywindow USA (1972,1973,1974,1975,1976,1977,1978,1979) - 914 (1970,1971,1972,1973,1974,1975,1976) - T25 (1980,1981,1982,1983) - Vanagon (1980,1981,1982,1983)
Additional Vehicle Info: 914,T25,T2 Bay
AC103492 – Cylinder Head Copper Gasket Set 90.5mm x 1mm
Description:
Set of 1mm thick Copper head gaskets for 90.5mm bore Performance Type1/2 engines.
Ideal for use on high compression or turbo engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC103493 – Cylinder Head Copper Gasket Set 94mm x 1.25mm
Description:
Set of 1.25mm thick Copper head gaskets for 94mm bore Performance Type1/2 engines - Ideal for use on high compression or turbo engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC103494 – Cylinder Head Copper Gasket Set 94mm x 1mm
Description:
Set of 1mm thick Copper head gaskets for 94mm bore Performance Type1/2 engines.
Ideal for use on high compression or turbo engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC103495 – Cylinder Head Copper Gasket Set 92mm x 1mm
Description:
EMPI copper head gasket set
Set of 1mm thick copper head gaskets for 92mm bore Performance Type1/2 engines.
Ideal for use on high compression or turbo engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC103496 – Cylinder Head Copper Gasket Set 92mm x 1.25mm
Description:
Set of 1.25mm thick Copper head gaskets for 90.5-92mm bore Performance Type1/2 engines.
Ideal for use on high compression or turbo engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC103498 – Cylinder Head Copper Gasket Set 94mm x 1.5mm
Description:
Set of 1.50mm thick Copper head gaskets for 94mm bore Performance Type1/2 engines.
Ideal for use on high compression or turbo engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105025 – Crankshaft Gland Nut & Washer Chromoly 38mm
Description:
Chromoly heat treated 38mm gland nut and large washer with a larger than standard 1.5 inch/38mm head for even pressure distribution. This is a heavy duty replacement for the stock gland nut. A must for performance engines running a long stroke crank.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105036 – Crankshaft Gland Washer Heavy Duty
Description:
Scat Heavy Duty gland washer to go with the Chromoly 38mm gland nut part AC105025
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105036A – Crankshaft Gland Nut and Washer Chromoly 38mm
Description:
Crankshaft gland nut and washer in Chromoly, 38mm.
This is a heavy duty replacement for the stock gland nut. A must for performance engines running a long stroke crank.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105039 – AA Performance I Beam Con Rod Set, 5.4" VW Journal
Description:
- Forged Chromoly Steel for superior strength in high-performance engines
- Stroker Clearance optimised for larger stroked cranks
- Versatile Fit ideal for 1300-1600cc and larger engine builds
Enhance your VW Type 1 Air Cooled Engine with our premium I Beam Connecting Rods. Made from forged Chromoly steel, these rods are built to last, featuring high-strength 3/8" rod bolts for added durability. Designed with stroker clearance, they accommodate larger stroked cranks, making them an excellent upgrade over stock VW rods. Whether you’re planning a performance build or simply looking to improve reliability, these rods are perfect for your needs.
With a standard length of 5.4", these connecting rods fit seamlessly into both 1300-1600cc builds and larger engines. Their versatility ensures they will perform exceptionally well in various applications, from daily drivers to race-ready setups. Upgrade your engine with confidence, knowing these I Beam Connecting Rods will deliver the performance and durability you demand.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Baywindow USA (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - T2 Split USA (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,T2 Bay,T2 Split,Type 3
AC105040 – SSP Con Rod Set 1300-1600cc I-Beam 5.4'' Length VW Journal
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Bearing tangs face down when fitting.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105045 – SSP Con Rod Set H-Beam 5.4'' Length VW Journal
Description:
- Forged 4340 Chromoly H-beam design for strength and reliability
- 5.4" length with VW crank journal for precise fit
- Lighter and stronger than stock VW connecting rods
- Fitted with 5/16'' 200,000psi bolts for enhanced durability
These forged 4340 Chromoly H-beam connecting rods, manufactured by SSP, are built for high-performance applications. With a 5.4" length and a VW crank journal, they are lighter and stronger than the original VW rods, providing better reliability and power transfer.
Engineered with precision, the rod caps reduce the need for excessive internal case clearancing when using a stroker crank. Fitted with high-strength 5/16'' 200,000psi bolts, these rods are designed to withstand extreme stress, making them an ideal choice for any performance or racing engine build.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Torque bolts to 30 lb., Bearing tangs face down when fitting.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105046 – SSP Con Rod Set H-Beam 5.5'' Length VW Journal
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Torque bolts to 30 lb., Bearing tangs face down when fitting.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105049 – EMPI Forged Crankshaft 69mm Stock VW Journals
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Baywindow USA (1968,1969,1970,1971,1972,1973) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105050 – SSP Forged Counterweighted Crankshaft 69mm VW Journal
Description:
- Precision ground and micro-polished
- Forged from 4140 chromoly
- Stock 69mm stroke with oil grooves
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Supplied with flywheel dowel pins fitted.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105052 – AA Performance Counterweighted Crankshaft Forged 74mm VW Journal
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:All Counterweighted Crankshafts require dynamic balancing with flywheel, pulley etc. prior to installation.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105054 – SSP Forged Counterweighted Crankshaft 76mm VW Journal
Description:
- Precision ground, micro-polished, and shot peened for durability
- Counterweighted design for smoother, balanced performance
- 8 dowelled for increased strength and reliability
- VW rod journals—ideal for big engine builds and increased displacement
The SSP Forged 4140 Chromoly Counterweighted 76mm Crankshaft is a high-performance upgrade for anyone looking to build a larger, more powerful engine. Manufactured from premium 4140 chromoly steel, this crankshaft is precision ground, micro-polished, and shot peened to ensure superior strength and longevity. The counterweighted design helps balance the rotating assembly, reducing stress on the engine and improving performance, especially at lower RPMs.
With 8 dowels for enhanced reliability, this crankshaft is designed to handle the increased demands of big engine builds, providing more torque at lower RPMs. However, keep in mind that while the longer stroke increases displacement and torque. This makes it an ideal choice for street or performance builds where low-end torque and overall engine reliability are a priority. Perfect for those looking to take their VW engine rebuild to the next level.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Supplied with flywheel dowel pins fitted.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105060 – SSP Forged Counterweighted Crankshaft 78.4mm VW Journal
Description:
- Forged 4340 Chromoly construction for strength and durability
- VW rod journals, cross groove oiling holes for optimal lubrication
- Micro-polished bearing journals for smoother operation
- Dynamically balanced, magnafluxed, and nitrided bearing surfaces
The SSP Forged 4340 Chromoly Counterweighted 78.4mm Crankshaft is engineered for high-performance engines, providing unmatched strength and reliability. Crafted from premium 4340 Chromoly steel, this crankshaft is built to handle the demands of both street and race applications. It features VW rod journals with cross groove oiling holes, ensuring optimal lubrication for smoother performance.
This crankshaft is designed for use with 8-dowel flywheels and includes extra-long 8mm flywheel dowels for a secure fit. It is dynamically balanced for smooth operation, magnafluxed for quality assurance, and nitrided on the bearing surfaces to enhance durability and wear resistance. Whether you’re building a high-performance engine or upgrading your setup, this SSP crankshaft delivers precision and strength for maximum power output.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:All Counterweighted Crankshafts require dynamic balancing with flywheel, pulley etc. prior to installation.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105070 – SSP Forged Counterweighted Crankshaft 82mm VW Journal
Description:
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Supplied with flywheel dowel pins fitted.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105080 – SSP Forged Counterweighted Crankshaft 84mm VW Journal
Description:
- Forged 4340 Chromoly for exceptional strength and durability
- Features VW rod journals and cross groove oiling holes for enhanced lubrication
- Dynamically balanced and magnafluxed for reliability
Upgrade your engine with the 84mm counterweighted crankshaft from SSP, expertly crafted from forged 4340 Chromoly for superior strength. This crankshaft includes VW rod journals and cross groove oiling holes to ensure optimal lubrication, enhancing the performance and longevity of your engine components.
The extra long 8mm flywheel dowels provide a secure fit, while the micro polished bearing journals reduce friction for smoother operation. Each crankshaft is dynamically balanced and magnafluxed, ensuring reliability under high-performance conditions. Elevate your engine’s capabilities with this high-quality 84mm crankshaft and experience improved power and torque on every drive.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Supplied with flywheel dowel pins fitted. All Counterweighted Crankshafts require dynamic balancing with flywheel, pulley etc. prior to installation.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051105 – CB Performance Counterweighted Crankshaft Forged 69mm VW Journal
Description:
- Forged 4140 Chromoly for superior strength and durability
- Precision ground, micro polished, and shot peened for performance
- Supplied with installed flywheel dowels for easy setup
Elevate your engine's performance with the 69mm counterweighted crankshaft, expertly crafted from forged 4140 Chromoly. This crankshaft features precision grinding and micro polishing for optimal smoothness and efficiency, while shot peening enhances its strength. Designed with VW rod journals and balanced for reliability, it’s the ideal choice for those looking to boost power and torque.
When you're ready to unlock more power, a stroker crankshaft is the perfect upgrade. Increased piston velocity translates to greater performance. While many crankshafts require crankcase clearancing, using Chevy diameter connecting rods can significantly reduce this need, making installation simpler. Notably, Super Race cases eliminate the need for any clearance work. Upgrade your engine confidently with this high-performance 69mm crankshaft, complete with flywheel dowels installed for a hassle-free installation.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:All counterweighted crankshafts require dynamic balancing with flywheel, pulley etc. prior to installation.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105110F – Scat Counterweighted Crankshaft Forged 78.8mm VW Journal
Description:
- High-strength 4340 Chromoly construction for enhanced durability
- Features VW rod journals and a straight shot oil system for efficiency
- Precision ground, magnafluxed, and dynamically balanced for optimal performance
Unleash the power of your engine with the Forged 4340 Chromoly Volksracer 78.8mm counterweighted crankshaft from Scat. Designed for serious performance, this crankshaft is expertly crafted to meet the demands of racing enthusiasts. With VW rod journals and an advanced straight shot oil system, it ensures effective lubrication and reliability under high-stress conditions.
This crankshaft is meticulously ground to exact specifications, magnafluxed to detect any imperfections, and dynamically balanced for smooth operation. It includes 8 dowel pins (unfitted) and features grooved main journals for improved oil flow. Additionally, the nitrided surface enhances strength and longevity. When you need more power, a stroker crankshaft is the perfect choice, providing increased piston velocity for greater torque. Most crankshaft sizes will require some clearance in the crankcase, but using Chevy diameter con rods can minimise this need. Super race cases, however, require no clearance work at all, making this crankshaft an exceptional upgrade for your performance build!
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051145 – EMPI Counterweighted Crankshaft Forged 78mm VW Journal
Description:
- Precision ground and micro-polished for optimal performance
- Shot peened and balanced for enhanced durability
- 8 dowelled with VW rod journals for a secure fit
Unlock more power with this Forged 4140 Chromoly Counterweighted 78mm Crankshaft, designed for high-performance applications. This crankshaft features precision grinding and micro-polishing, ensuring smooth operation and increased efficiency. Shot peening and balancing enhance its strength, making it an ideal choice for demanding setups.
A stroker crankshaft like this one boosts piston velocity, resulting in greater power and torque. While most crankshaft sizes will require some clearancing of the crankcase, using Chevy diameter con rods can minimize this need due to their smaller big ends compared to VW rods. Additionally, super race cases typically don’t require any clearance work, making installation easier. Supplied with flywheel dowels already installed, this crankshaft is ready to help you take your performance to the next level!
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051154 – CB Performance Counterweighted Crankshaft Forged 82mm VW Journal
Description:
- Crafted from durable 4340 chromoly for superior strength
- Features VW rod journals with cross groove oiling holes
- Dynamically balanced and magnafluxed for optimal performance
- Supplied with pre-installed extra long 8mm flywheel dowels
Elevate your engine's performance with the CB Performance Forged 4340 Chromoly Counterweighted 82mm Crankshaft. Designed for those seeking increased power and torque, this crankshaft features VW rod journals and cross groove oiling holes for improved lubrication. The extra long 8mm flywheel dowels ensure a secure fit, while the micro-polished bearing journals provide smooth operation.
This dynamically balanced crankshaft is perfect for building stroker engines, as it enhances piston velocity and power delivery. For most crankshaft sizes, some clearancing of the crankcase is required; however, using Chevy diameter con rods can reduce this need. With super race cases, no clearance work is necessary. Upgrade your build with this high-performance crankshaft and experience the difference in power and efficiency!
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051254 – CB Performance Con Rod Set I-Beam 5.4'' Length VW Journal
Description:
- Forged 4340 Chromoly for strength and durability
- Compact I-beam design minimises crankcase clearance needs
- Compatible with long stroke crankshafts up to 82mm
Upgrade your engine with the 5.4 Inch Unitech I-Beam Connecting Rods, crafted from high-quality forged 4340 Chromoly. These rods feature an innovative I-beam design tailored for VW crank journals, providing both strength and lightweight performance. Their compact construction significantly reduces the need for crankcase clearancing, making them an ideal choice for those using long stroke crankshafts.
Designed to accommodate stroke lengths of up to 82mm, these connecting rods are perfect for 1300-1600cc builds and beyond. Whether you're enhancing a stock setup or building a high-performance engine, the Unitech I-Beam Connecting Rods deliver the reliability and performance you need for an exceptional driving experience. Upgrade your build today and feel the difference.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051260 – Bolt for Con Rod ARP 2000 5/16''
Description:
ARP 2000 5/16'' screw-in rod-bolts for performance engines using aftermarket con-rods with 5/16'' screw-in bolts.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051289 – Con Rod Set Super Race H-Beam VW Journal 5.4'' Length
Description:
- Forged 4340 Chromoly for superior strength and lightweight design
- Engineered for minimal case clearancing with stroker cranks
- Supplied with 5/16 inch ARP-2000 rod bolts for added reliability
Upgrade your engine with the 5.4 inch H-Beam Connecting Rods from CB Performance, crafted from forged 4340 Chromoly for exceptional strength and reduced weight. These Super Race rods feature a H-beam design specifically tailored for VW crank journals, making them a superior choice compared to original VW rods. Engineered with precision, the rod caps minimize the need for internal case clearancing, allowing you to run strokes up to 76mm without additional modifications.
Whether you’re building a high-performance engine or enhancing an existing setup, these connecting rods provide the durability and reliability you need. Supplied with 5/16 inch ARP-2000 rod bolts, they ensure a secure fit that withstands the rigors of racing and spirited driving. Elevate your performance and maximize your engine's potential with these top-of-the-line connecting rods from CB Performance.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051290 – Con Rod Set Super Race H-Beam VW Journal 5.5'' Length
Description:
- Lightweight and strong H-beam design for improved performance
- Fits VW crank journal for easy installation
- Allows strokes up to 76mm without internal case clearancing
- Supplied with durable 5/16 inch ARP-2000 rod bolts
Enhance your engine's performance with the CB Performance Forged 4340 Chromoly 5.5-inch H-beam connecting rods. These Super Race rods are specifically designed to be lighter and stronger than original VW rods, providing exceptional durability for high-performance applications.
The innovative rod cap design reduces the need for internal case clearancing, making it possible to run stroker cranks up to 76mm without modifications. Each set comes equipped with high-quality 5/16 inch ARP-2000 rod bolts, ensuring a secure and reliable connection. Upgrade your engine with these top-of-the-line connecting rods and experience the difference in performance.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105150 – Scat Con Rod Set I-Beam VW Journal 5.4'' Length
Description:
- Forged 4340 Chromoly for unmatched strength and performance
- Compact I-beam design minimizes crankcase clearance requirements
- Supplied with 3/8'' ARP 2000 rod bolts for secure fastening
Enhance your engine with the 5.4 Inch I-Beam Connecting Rods from SCAT, crafted from durable forged 4340 Chromoly. These rods feature an I-beam design specifically engineered for VW crank journals, offering a perfect blend of strength and weight savings. Their compact design reduces the need for crankcase clearancing, allowing for seamless integration with long stroke crankshafts.
Precision machined and supplied in balanced matching sets, these connecting rods ensure optimal performance and reliability for your engine build. Designed to fit VW journals, they are ideal for both stock and high-performance applications. Upgrade your setup with SCAT’s I-Beam Connecting Rods and experience the difference in power and efficiency.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Torque bolts to 48 lb.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105160 – Scat Con Rod Set H-Beam VW Journal 5.6'' Length
Description:
- H-beam design tailored for VW crank journals
- Supplied with durable 5/16'' ARP 2000 rod bolts
- Compact design minimizes crankcase clearance issues
Upgrade your engine with SCAT Forged 4340 Chromoly H-Beam Connecting Rods, engineered for performance and reliability. These rods feature a robust H-beam design specifically crafted to fit VW crank journals, ensuring a perfect match for your setup. Each rod is supplied with high-strength 5/16'' ARP 2000 rod bolts, providing added durability for high-performance applications.
The compact design of these connecting rods reduces the need for crankcase clearancing, making them ideal for use with long stroke crankshafts. Additionally, their longer-than-standard length improves the rod-to-stroke ratio, enhancing performance in long stroke engines. Trust SCAT's quality engineering to elevate your build with these high-performance connecting rods.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Torque bolts to 26 lb.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1051915 – Crankshaft Pulley Shim Set
Description:
- Aligns top and bottom pulleys for perfect fit
- Includes 4 crank pulley shims and 4 alternator shims
- Available in 0.74mm and 1.19mm thicknesses
Optimise your engine setup with the CB Performance Top and Bottom Pulley Shim Kit. This essential kit provides the shims needed to align both your crank and alternator pulleys when fitting aftermarket components and fan shrouds. With 4 shims for each pulley, you'll have the flexibility to achieve the precise alignment you need for optimal performance.
Each shim is thoughtfully designed in two thicknesses—0.74mm and 1.19mm—providing two of each size for the crankshaft and alternator. This ensures you have the right tools at hand to make necessary adjustments, enhancing your engine’s efficiency and longevity. Upgrade your setup with this comprehensive shim kit and experience improved alignment and performance.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Baywindow USA (1968,1969,1970,1971,1972) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Trekker (1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,Trekker,T2 Bay,T2 Split,Type 3
AC105227 – Scat Crankshaft Pulley Santana Billet Aluminium
Description:
Stock diameter Santana billet aluminium crank pulley manufactured by Scat. Finished with a black degree ring.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105227E – Scat Pulley, Santana Black
Description:
Scat Santana Black Degree Pulley 6-3/4'' Standard Diameter.
Hard anodised laser engraved Scat billet. Laser engraved degree numbers and marks. Deep thread.
Pulley allows for effective and accurate timing of the ignition.
Style - Santana (With holes)
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105240 – Crankshaft Pulley Bolt Silver Zinc Plated Steel Broached
Description:
Silver zinc plated billet steel 3/8" drive broached crankshaft pulley bolt and washer.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105241 – Crankshaft Pulley Bolt Chrome with Washer
Description:
Chrome plated stock (19mm) length crankshaft pulley bolt and washer.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105253 – Crankshaft Pulley Sawblade Aluminium
Description:
- Striking sawblade design enhances your engine's appearance
- Precision machined for accurate timing and performance
- Durable materials ensure longevity and reliability
Transform your VW engine with the Black Sawblade Design Degree Crankshaft Pulley, a unique upgrade that marries style with functionality. Featuring a bold sawblade aesthetic, this pulley not only looks great but is also designed for precision. It guarantees accurate timing and smooth operation, making it an essential component for performance enthusiasts.
Constructed from high-quality materials, the Black Sawblade Degree Crankshaft Pulley is built to withstand the rigors of demanding driving conditions. Whether you're racing on the track or cruising on the street, this pulley delivers reliability and performance. Upgrade your VW engine today and enjoy the perfect blend of eye-catching design and top-notch functionality.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105260 – Crankshaft Pulley Equalizer Black
Description:
Stock diameter steel equaliser pulley 2.6Kg. Finished in black
Designed to reduce crank twist and damp vibration on high revving engines fitted with lightened flywheels
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105260R – Crankshaft Pulley Replacement Degree Ring for Equalizer Pulley
Description:
Degree ring for equalizer pulley, in black with white numbering.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105261 – Crankshaft Pulley Equalizer Silver
Description:
Steel equaliser 5.7lbs pulley. Stock diameter. Designed to reduce crank twist and damp vibration on high revving engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105263 – Crankshaft Pulley Round Holes Aluminium
Description:
- Lightweight cast aluminium for improved performance
- Stock diameter with precision-engineered holes
- Finished with a black degree ring for easy timing adjustments
Enhance your engine's functionality with our cast aluminium crankshaft pulley, designed for both durability and performance. This pulley features a stock diameter, making it a perfect replacement for your existing component while providing weight savings that can improve engine response.
The precision-engineered holes allow for easy installation and adjustment, while the black degree ring offers clear visibility for timing settings. Whether you're rebuilding your engine or upgrading for performance, this crankshaft pulley delivers reliability and efficiency on every drive.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1052665 – Con Rod Set Super Race H-Beam Chevy Journal 5.5'' Length
Description:
- Lightweight and strong H-beam design for enhanced performance
- Compatible with Chevy crank journal for easy installation
- Supports strokes up to 76mm without case clearancing
- Supplied with 5/16 inch ARP-2000 rod bolts for reliability
Upgrade your engine with the CB Performance Forged 4340 Chromoly 5.5-inch H-beam connecting rods. These super race rods are engineered to be both lighter and stronger than original VW rods, delivering superior performance for your build.
Designed with a Chevy crank journal, these rods allow for easy installation and reduce the need for internal case clearancing when using a stroker crank. With the capability to accommodate strokes up to 76mm without modification, these connecting rods are ideal for high-performance applications. Each set comes with durable 5/16 inch ARP-2000 rod bolts, ensuring a secure and reliable connection for your engine. Elevate your performance with these top-of-the-line connecting rods.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105331055 – Crankshaft Pulley Black Anodised Lazer Engraved Degree Ring
Description:
- Crafted from lightweight billet aluminium for enhanced performance
- Black anodised finish for durability and corrosion resistance
- Features precision holes and a laser engraved degree ring for accurate timing
Upgrade your engine with this stock diameter billet aluminium crank pulley, designed for optimal performance and reliability. The lightweight construction helps improve engine response, while the black anodised finish provides excellent durability and a sleek appearance.
Equipped with precision-engineered holes for easy installation and a laser engraved degree ring for precise timing adjustments, this crank pulley is perfect for both performance enthusiasts and everyday drivers. Enhance your engine's functionality and aesthetics with this high-quality component.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105331090 – Crankshaft Pulley Billet Steel
Description:
- Reduces crankshaft vibration for longer engine life
- Fully balanced for smooth, reliable performance
- Silver zinc finish with bright white timing marks
- Durable design for extended engine case and bearing life
This high-quality pulley is designed to reduce crankshaft vibration, significantly extending the life of your engine case and bearings. Fully balanced for optimal performance, it ensures smooth operation and minimises wear over time.
The pulley features a sleek silver zinc finish, with durable bright white timing marks and numbers set against a black background for clear visibility. Its robust design makes it a reliable and long-lasting upgrade for your engine, providing both functionality and style.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Trekker (1969,1970,1971,1972,1973,1974,1975,1976)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,Trekker,T2 Bay,T2 Split
AC105346 – Scat Crankshaft Pulley Billet Aluminium
Description:
- Crafted from high-quality 60161-T6 aluminium for superior durability
- Stock diameter for easy installation and compatibility
- Finished with a black degree ring for precise timing adjustments
Enhance your engine's performance with the stock diameter plain billet aluminium crank pulley from Scat. This pulley is meticulously machined from premium 60161-T6 aluminium, ensuring exceptional strength and lightweight benefits for improved engine response.
The sleek black degree ring allows for easy visibility during timing adjustments, making it a practical addition to your setup. Ideal for both performance builds and stock applications, this crank pulley combines durability and functionality, helping your engine run at its best. Upgrade with confidence and experience the difference!
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Note: This pulley comes with a spacer shim in the kit that may need to be fitted behind the pulley to ensure the back of the pulley clears your crankcase.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105353 – Crankshaft Pulley Plain Aluminium
Description:
- Stock diameter with 360-degree black timing marks
- Precision machined, polished for a show-quality shine
- High-performance look and increased horsepower
Upgrade your engine with this Cast Aluminium Crankshaft Pulley, designed with a stock diameter for a perfect fit. It features full 360-degree timing marks, screened on with a special process for durability and precision. This allows for accurate timing and valve settings, potentially increasing horsepower and enhancing performance.
Crafted from high-grade aluminium, this pulley boasts a solid billet style with black timing numbers for easy readability. The precision machining and high-speed polishing give it a show-quality shine, adding a high-performance aesthetic to your engine. Ideal for those seeking both functionality and a sleek appearance.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105372 – Scat Counterweighted Crankshaft Forged 69mm VW Journal
Description:
- Crafted from high-strength 4340 Chromoly for durability
- VW journal, 8 dowelled, magnafluxed, and micro-polished
- Grooved main journals for enhanced oil flow and performance
Boost your engine's performance with the Volksracer Forged 4340 Chromoly Counterweighted 69mm Crankshaft, expertly manufactured by Scat. This crankshaft is designed with precision, featuring VW journal compatibility and 8 dowels for a secure fit. Each crankshaft is magnafluxed for integrity, micro-polished for smooth operation, and meticulously balanced to ensure optimal performance.
The grooved main journals promote superior oil flow, while the radiused journals and chamfered oil holes enhance reliability and reduce wear. Supplied with flywheel dowel pins already fitted, this crankshaft is ready for installation and designed to withstand the demands of high-performance applications. Upgrade your setup with this robust crankshaft and experience the power and efficiency it brings to your engine!
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1054000-50 – Crankshaft Gear Racing Spacer
Description:
Crankshaft Gear Racing Spacer
This item replaces the stock spacer between the gears on the crankshaft. it is a solid steel band unlike the stock item and will not open under load. Ideal for high performance engines.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC10560007 – Flywheel Forged 12 Volt 1 Piece 8 Dowel 200mm
Description:
- Forged 1-piece chromoly flywheel for durability and strength
- 8 dowel design for secure fit and performance
- 200mm size, perfect for high-performance engines
- Ideal for racing or heavy-duty applications
Upgrade your engine's performance with this forged 1-piece chromoly flywheel. Made from high-strength chromoly, this flywheel offers superior durability and resistance to wear, making it perfect for high-performance and racing applications. The 8 dowel design ensures a secure, precise fit, while the 200mm size provides the ideal balance of performance and efficiency for your setup. Whether you're building a racing engine or upgrading your current one, this flywheel delivers the reliability and strength needed for demanding applications.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1947,1948,1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Buggy/Baja (1947,1948,1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Buggy/Baja,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1056802 – Crankshaft Pulley Bolt & Washer Broached
Description:
Broached crank bolt & washer with a 3/8'' drive for making working on the engine easier
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105701 – Big End Bearing Set Chevrolet Journal Standard
Description:
Set of standard con-rod / Big-end bearings in Chevy journal size for engine running performance crankshafts with 2'' Chevy rod-journals. Sold in set to do 4 rods.
CHEVY 2.000''/51 mm Rod Journal. For use with all SCAT SUPERLITE PRO-MOLY II and VW connecting rods,
Steel-backed special alloy bearings. A must for performance applications where reliability & longevity is essential.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105780 – Lightened Flywheel Cast 8 Dowel 200mm 1500-1600cc
Description:
- Cast lightened flywheel for use with a 200mm clutch
- Weighs just 13.09 lbs (5.95 kg) for enhanced acceleration
- 8 dowelled for secure fitment and durability
- Features a 12-volt, 130 teeth ring gear for seamless compatibility
Boost your performance engine with our cast lightened flywheel, expertly designed for use with a 200mm clutch. This flywheel is specifically engineered for counter-weighted crankshafts, providing a significant advantage in acceleration and overall engine life.
Its lightweight construction reduces rotational mass, allowing your engine to rev faster and respond more quickly to throttle inputs. With robust 8 dowels for added stability and a reliable 12-volt ring gear, this flywheel ensures compatibility and performance for your high-powered setup. Upgrade your engine today and experience the difference in performance!
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105780F – Lightened Flywheel Forged 8 Dowel 200mm 1500-1600cc
Description:
- Forged lightened flywheel made from Chromoly steel for use with a 200mm clutch.
- Weighs only 12.65 lbs (5.75 kg) for improved throttle response
- 8 dowelled design ensures maximum stability and fitment
- Equipped with a 12-volt, 130 teeth ring gear for seamless integration
Enhance your performance engine with our forged lightened flywheel, crafted from high-strength Chromoly steel. Specifically designed for use with a 200mm clutch, this flywheel is ideal for crankshafts aimed at maximizing power and efficiency.
The lightweight construction not only boosts acceleration but also promotes better engine responsiveness, making it a must-have for any performance setup. With its durable 8 dowels and reliable 12-volt ring gear, this flywheel guarantees a secure fit and optimal performance. Upgrade your engine's capabilities and feel the difference on the road!
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC105790 – Forged Flywheel 1700-2000cc or Waterboxer 200mm
Description:
- Compatible with 200mm clutches – no gearbox clearancing needed
- Fits Type 1 & T2 gearboxes up to '75; ideal for Type 4/Waterboxer swaps
- Stock weight improves drivability, especially in heavier Bus models
Compatible Vehicles: - T2 Bay (1972,1973,1974,1975,1976,1977,1978,1979) - T25 (1980,1981,1982,1983)
Notes:If using on a T1 gearbox or on a T2 1600 gearbox then you will need an additional needle bearing 111-105-313\/A fitted into the centre of the flywheel to support the input shaft.
Additional Vehicle Info: T25,T2 Bay
AC105795 – Flywheel Forged 215mm 1700-2000cc or Waterboxer
Description:
- Forged flywheel for use with a 215mm clutch
- Weighs 14.5 lbs for enhanced engine responsiveness
- Compatible with Type 4 or Waterboxer engines in Type 1 and T2 gearboxes up to '75
- Features upgraded 8mm clutch bolt holes for improved durability
Upgrade your engine setup with our lightened forged flywheel, designed for use with a 215mm clutch. Weighing 14.5 pounds, this flywheel significantly enhances acceleration and throttle response, making it an excellent choice for performance applications.
This flywheel is perfect for fitting Type 4 or Waterboxer engines to Type 1 gearboxes or T2 gearboxes up to '75, requiring no gearbox clearancing. Its upgraded 8mm clutch bolt holes provide greater strength compared to the original 7mm design, ensuring reliable performance for any standard Type 4 or Waterboxer engine needing a new flywheel. Can also be used on any standard Type4 or Waterboxer which requires a new flywheel or use 025-105-271
Compatible Vehicles: - T2 Bay (1972,1973,1974,1975,1976,1977,1978,1979) - T25 (1980,1981,1982,1983)
Notes:Clutch bolts part = AC1411369
Additional Vehicle Info: T25,T2 Bay
AC10580347 – Sand Seal Pulley & Bolt-In Collar
Description:
Stock size sand seal pulley supplied with a press in sand seal that requires no machining to fit and simply slips in. Finished in billet aluminium with black trim.
Sand seal pulleys are designed for off road use as the oil screw of a normal pulley can pull dust and grit into the engine. Machine in seals are suitable for crankcases that have an oversize pulley bore due to wear or damage. Sand seal pulleys will require extra long bolts
This is for a sand seal with an OD of 2.332 inch / 59.2mm and an ID of 1.845 inch / 46.85mm
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967)
Notes:Requires a longer pulley bolt such as AC1059118 Replacement seal available = AC1058694 Replacement collar with seal = AC1058695
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split
AC1058120 – EMPI Counterweighted Crankshaft Forged 69mm VW Journal
Description:
- Precision ground and micro-polished
- Forged from 4140 chromoly
- Stock 69mm stroke with oil grooves
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Baywindow USA (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - T2 Split USA (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1058140 – Crankshaft Dowel Pin Set of 8 HD Extra Long
Description:
Crankshaft dowel pins supplied as a set of 8. Longer than standard
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1058688 – Sand Seal Pulley & Bolt-In Collar
Description:
Stock size sand seal pulley. Finished in billet aluminium with holes and with black trim.
Sand seal pulleys are designed for off road use as the oil screw of a normal pulley can pull dust and grit into the engine. Supplied with a press in sand seal that requires no machining to fit and simply slips in. Machine in seals are suitable for crankcases that have an oversize pulley bore due to wear or damage. Sand seal pulleys will require extra long bolts
This is for a sand seal with an OD of 2.332 inch / 59.2mm and an ID of 1.845 inch / 46.85mm
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978) - Buggy/Baja (1947,1948,1949,1950,1951,1952,1953,1954,1955,1956,1957,1958,1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967)
Notes:Requires a longer pulley bolt such as AC1059118 Replacement seal available = AC1058694 Replacement collar with seal = AC1058695
Additional Vehicle Info: Beetle,Beetle Cabriolet,Buggy/Baja,Karmann Ghia,T2 Bay,T2 Split

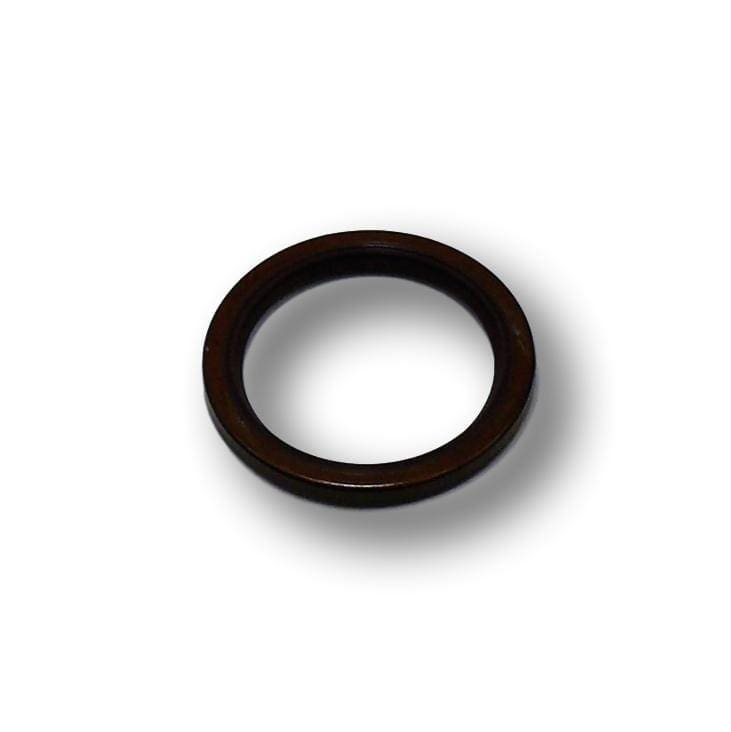

AC1058694 – Sand Seal for Bolt In Pulley
Description:
Crankshaft pulley sand seal. This is a replacement case seal for AC1058688
Sand seal pulleys are designed for off road use as the oil screw of a normal pulley can pull dust and grit into the engine. Supplied with a press in sand seal that requires no machining to fit and simply slips in. Machine in seals are suitable for crankcases that have an over size pulley bore due to wear or damage.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Buggy/Baja (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Fits EMPI Bolt-In and Machine In Sand Seal Pulleys
Additional Vehicle Info: Beetle,Beetle Cabriolet,Buggy/Baja,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1058695 – Sand Seal & Bolt-In Collar
Description:
crank pulley sand seal. This is a bolt in seal
Sand seal pulleys are designed for off road use as the oil screw of a normal pulley can pull dust and grit into the engine. Supplied with a press in sand seal that requires no machining to fit and simply slips in. Machine in seals are suitable for crankcases that have an oversize pulley bore due to wear or damage.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Buggy/Baja (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Only for use on EMPI sand seal pulleys.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Buggy/Baja,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1058696 – Sand Seal & Bolt-In Collar
Description:
Bolt-in collar & sand seal crank pulley seal. Each
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:Only for use on SCAT sand seal pulleys.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC1058697 – Sand Seal & Machine-In Replacement
Description:
Sand seal crank pulley seal - machine into case or replaces seal in bolt-in collar. Each
Replacement Sand seal Only
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967)
Notes:Only for use on SCAT sand seal pulleys.
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split
AC1059118 – Crankshaft Pulley Bolt Extra Long
Description:
Extra-long 25mm shaft for secure pulley fastening
-
Chrome plated finish for durability and corrosion resistance
-
Includes matching washer for proper load distribution
This high-quality crankshaft pulley bolt features an extra-long 25mm shaft, ideal for applications requiring a deeper reach and solid fastening. Chrome plated for added strength and a clean finish, it offers excellent resistance to rust and wear.
With a total length of 36mm, 22mm thread length, and 1.5 pitch, this bolt is precisely engineered for a secure fit. It comes complete with a washer to ensure proper torque distribution. The 30mm head with 8mm thickness and 19mm diameter shaft make it a reliable choice for performance or restoration work.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC109000 – Engle W100 Camshaft
Description:
- Requires 3-bolt cam wheel and pre-1971 oil pump
- Suited for Type 2s and engines up to 1776cc
- Includes .383″ cam lift, .420″ valve lift (1.1 rockers)
Elevate your engine’s performance with the Engle 100 Camshaft, designed specifically for Type 2s and engines up to 1776cc. This camshaft offers a substantial .383″ cam lift and a .420″ valve lift with 1.1 rockers, providing robust power and efficiency improvements.
With a duration of 276 degrees advertised and 236 degrees at .050″ on a 108 Lobe Centre, the Engle 100 ensures optimal performance. Note that it is supplied without a drive wheel, which must be purchased separately. Always install new cam followers with a new camshaft and follow the provided break-in instructions to maximize the lifespan of both the camshaft and followers.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
AC109010 – Engle W110 Camshaft
Description:
- Requires 3-bolt cam wheel and pre-1971 oil pump
- Suited for engines up to 1776cc
- Designed for 1.1 or 1.25 rockers, and it's specs are .392" Cam Lift, .430" Valve Lift
Boost your engine’s performance with the Engle 110 Camshaft, engineered for engines up to 1776cc. Featuring a .392″ cam lift and .430″ valve lift with 1.1 rockers, this camshaft enhances both power and efficiency.
The Engle 110 provides 284 degrees of advertised duration and 247 degrees at .050″ on a 108 Lobe Centre, offering a significant performance boost. Note that it is supplied without a drive wheel, which must be purchased separately. Always fit new cam followers with a new camshaft and adhere to the provided break-in instructions to ensure the longevity of both the camshaft and followers.
Compatible Vehicles: - T2 Bay (1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Beetle Cabrio (1959,1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974,1975,1976,1977,1978,1979) - Karmann Ghia (1960,1961,1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973,1974) - T2 Split Bus (1959,1960,1961,1962,1963,1964,1965,1966,1967) - Type 3 (1962,1963,1964,1965,1966,1967,1968,1969,1970,1971,1972,1973)
Notes:
Not recommended for stock carburettors
Additional Vehicle Info: Beetle,Beetle Cabriolet,Karmann Ghia,T2 Bay,T2 Split,Type 3
Replies have been locked on this page!
